Nano Serise

面向车主个人用户的汽车诊断工具

Current position:index>Products>Nano Serise

The VNCI J2534 nano diagnostic tool is compatible with most J2534 software and ELM327 software, and

Date issued:2023-06-01
Views count:325
Type:Nano series
Color:Red
Price:$19.9
Product details




Product features:

1. Support most J2534 compatible software (HDS, TIS, 5054A, for JLR SDD)

2. Support most ELM327 software (ELMConfig, ScanMaster...)

3. Support ECU reprogramming and programming voltage in J2534 mode

4. Provide free software to diagnose J1979 compatible vehicles

5. Support Windows 8/10/11, 32/64 bits



The following languages are supported:

5054A: English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian, Croatian, Danish, German, Swedish, Finnish, Slovene, Czech

Russia, Greece, China

Toyota: English, French, Spanish, Japanese, German, Italian, Russian, Turkish, Chinese

Honda: English, German, Czech, Dutch, Finnish, French, Greek, Hungarian, Italian, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish, Japanese, Chinese

Available for JLR SDD: German, English, Spanish, French, Italian, Dutch, Portuguese, Russian, Japanese, Chinese, Korean

For ELM327 Forscan: English, Russian, Polish, Italian, German, Hungarian, Turkish, French, Latvian, Bosnian, Finnish, Romanian, Portuguese, Traditional Chinese, Simplified Chinese, Czech, Lithuanian, Slovak, Ukrainian

For scanmaster elm 327: English, Czech, German, Spanish, French, Hungarian, Italian, Polish, Serbian, Turkish, Danish, Croatian

For KTM FLASH: English, Russian

Note :KTM FLASH V1.20: Buyers need to purchase a USB dongle, which only supports the OBD part. It does not support workbench, boot, vag, dsg, and gearbox.)


Product highlights:

1. Both J2534 and ELM327 modes are supported. Automatic mode switching.

2. More acceleration. Faster communication and reprogramming.

3. More stable. Never let you down when it comes to reprogramming.

4. Easy to carry. Small package, easy to carry.



VNCI J2534 Nano protocol configuration:

1. ISO15765(Standard/Extension Framework).

2. ISO9141.

3.ISO14230.

4. J1850 PWM(supports IFR and 2X speed modes).

5. J1850 VPW(supports 4X speed mode).

6. Programming voltage.

7. Short to the ground.

8. ELM327 and command set version 1.5a


VNCI J2534 nano Hardware Configuration:

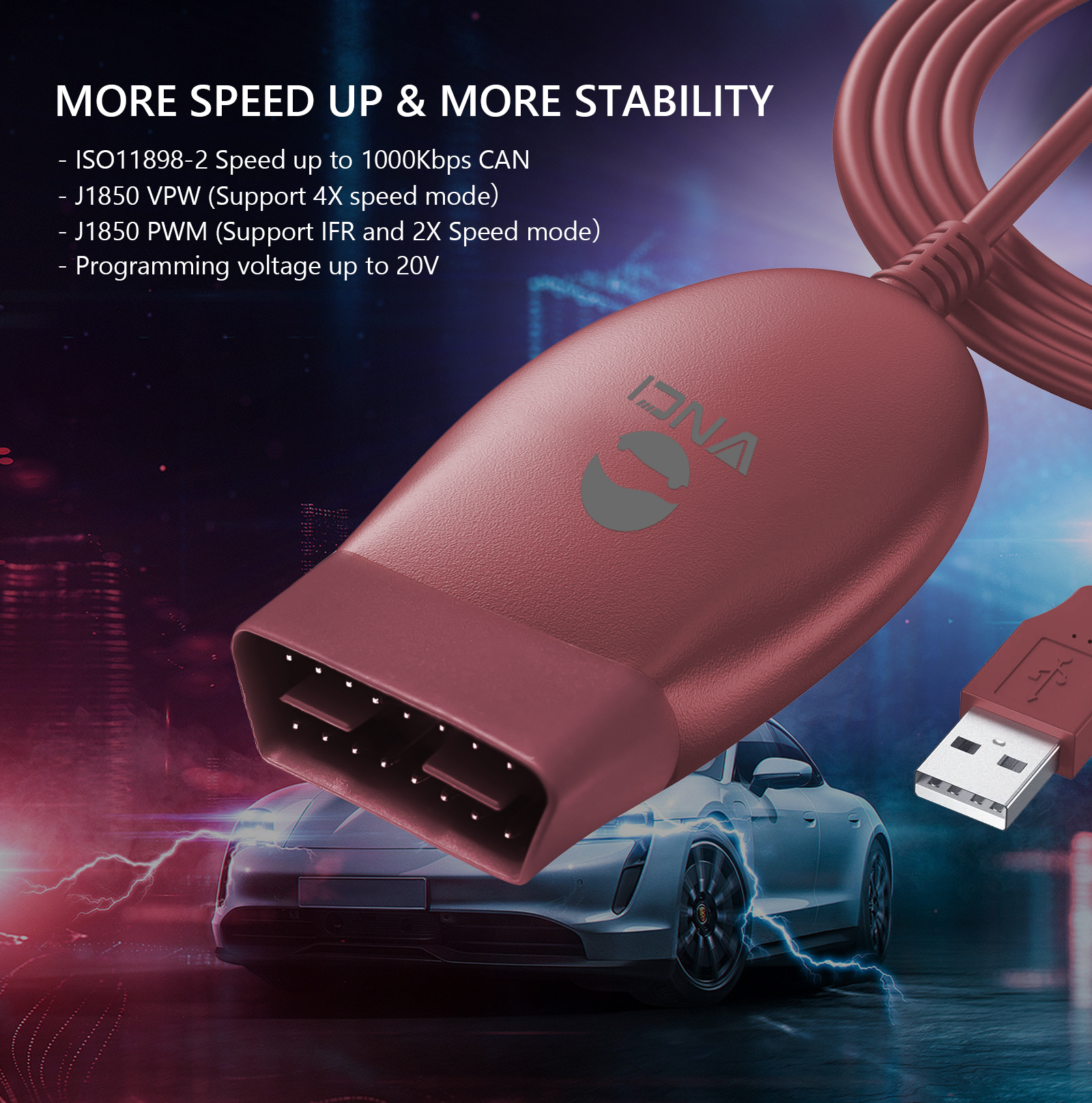

1. ISO11898-2 High speed CAN (OBDII pins 6 and 14) speeds up to 1000Kbps).

2. ISO9141 and ISO14230K wire (OBDII PIN 7 and PIN 15).

3.J1850 PWM (OBDII PIN 2 and PIN 10).

4. J1850 VPW (obdii pin 2).

5. Programming voltage (OBDII pin 12 or pin 13. Programmable voltage up to 20V).

6. Short to ground (OBDII pin 9). As short as OBDII PIN5).

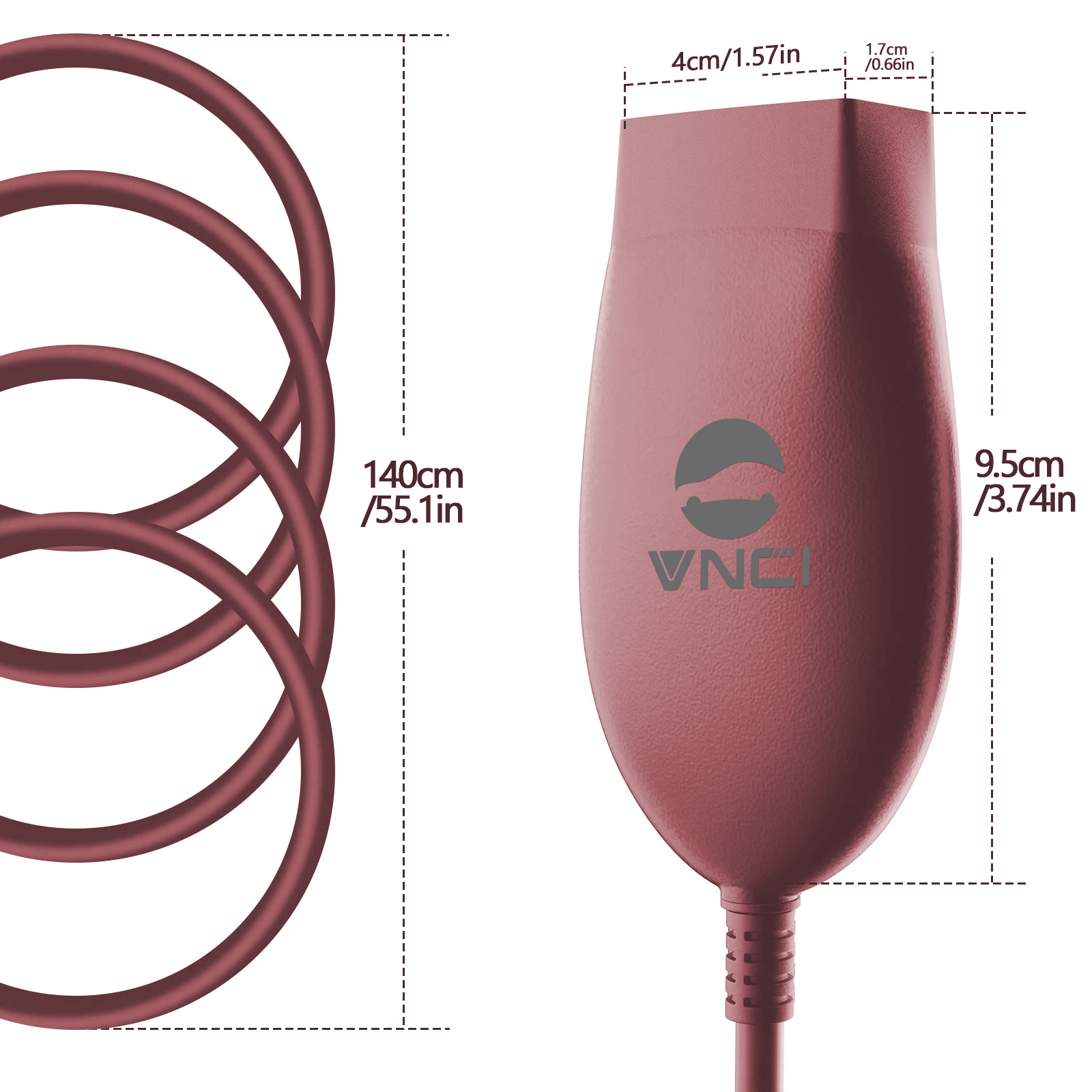

7. Dimensions (L * W * H): 95 mm * 55 mm * 23 mm

8. Environment :-20℃-45℃(-113℉)

9. Vehicle voltage requirement :8-18V DC

10. Car connection: molded DLC3(OBDII-16)

11. Host connection :USB 2.0



VNCI NANO J2534 Feature list:

We can Free software download link for Toyota TIS Techstream, For Honda HDS, 5054A, Forscan, Scanmaster, JLR SDD. Please Contact us to for software download link after you receive VNCI J2534 Nano if you need.



Software

Brand

Year

NOTE

Toyota TIS Techstream

For Toyota, Lexus

1995-2022

Free download and activate software, update by link

Honda HDS 3.102

For Honda Acura

1995-2022

Does not support non-#7 K-line, update by link

5054-S/-E

VW Audi Skoda Seat

1995-2022

For J2534 VAG only. Don’t support CAN FD protocol,

Don’t support Ignition switch voltage detection

Forscan 2.3.48

Ford Mazda Lincoln

1996-2022

Cannot do 3, 11 medium speed CAN

Scanmaster V2.0


1996-2022

Free download and activate software

KTM Flash V1.2.0

67 modules

1996-2022

Yes, test by your side

J1979Tester


1996-2022

Free Honda immo code calculation

ELMConfig


1996-2022

Yes, test by your side

Volvo VIDA

For Volvo

1996-2022

Yes, test by your side

JLR SDD2

For Jaguar Land rover

2006-2016

Yes, test by your side

GDS2

For GM Buick Cadilac Chevlert

1995-2022

Yes, test by your side

Xentry Passthru

For Benz, Smart

1995-2022

Yes, test by your side

ISTA-D, ISTA-P

For BMW, Mini

1995-2022

Yes, test by your side

Consult III-R2R

For Nissan, Infiniti

1995-2022

Yes, test by your side
